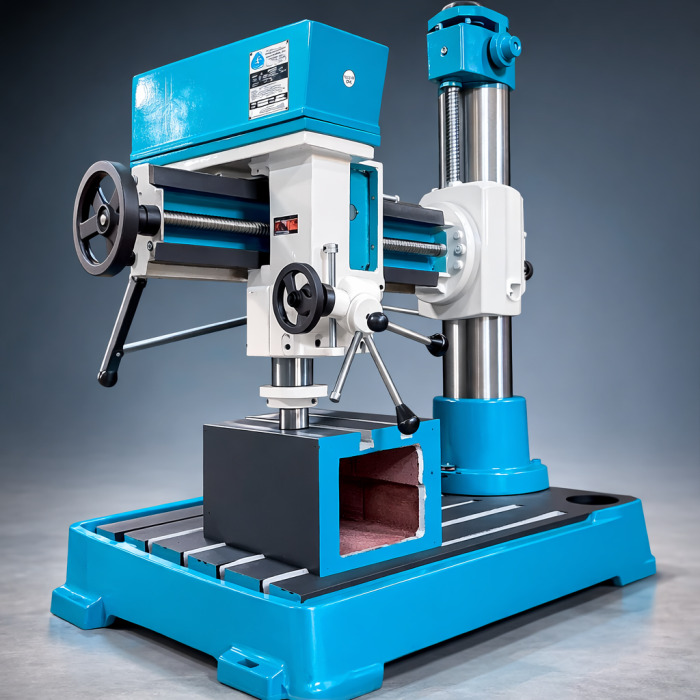

Send Inquirydrilling cum milling machines
Price 65000 INR/ Piece
MOQ : 1 Piece
drilling cum milling machines Specification
- Table Size
- 800 x 240 mm
- Frequency
- 50 Hz
- Spindle Speed
- 80 - 2800 RPM (Variable)
- Machine Type
- Vertical Milling cum Drilling
- Features
- Heavy Duty Structure, Smooth Operation, Rigid Construction, Easy Controls
- Cutting Area
- Large Working Table
- Condition
- New
- Noise Level
- Low
- Diameter
- 25 mm (Max Drilling)
- Motor Power
- 2 HP
- Dimension (L*W*H)
- 1200 x 950 x 1800 mm
- Product Type
- Drilling Cum Milling Machine
- Material
- Cast Iron, Mild Steel
- Computerized
- No
- Automatic Grade
- Semi-Automatic
- CNC Or Not
- Not CNC
- Control System
- Manual
- Voltage
- 220-415 V
- Power
- 1.5 - 3 HP
- Power Source
- Electric
- Weight (kg)
- 450 - 900 kg
- Capacity
- 25 mm drilling, 15 mm milling
- Color
- Blue & White
- Usage & Applications
- Industrial Metal Cutting, Precision Machining, Drilling and Milling Operations
- Travel of Spindle
- 120 mm
- Main Shaft Bore
- 20 mm
- Spindle Taper
- MT 3 / MT 4
- Feed Mechanism
- Manual / Automatic
- Number of Speeds
- 8 or 12 Steps
- V-Belt Drive
- Yes
- Max Distance from Spindle to Table
- 500 mm
- Coolant System
- Available (Optional)
- Table Traverse (X/Y)
- 400 mm / 180 mm
drilling cum milling machines About
drilling cum milling machines manufacturer bhavnagar gujarat india
Choosing the right industrial drilling machine is important for ensuring accuracy, efficiency, and smooth production in engineering and manufacturing work.
Before selecting a machine, it is important to consider factors such as the type of material, drilling capacity, machine size, and the level of precision required. Different machines like pillar drill machines, radial drill machines, and drilling cum milling machines are designed for specific industrial applications.
Selecting the right machine helps improve productivity, reduce operational errors, and ensure long-term performance in workshops and manufacturing industries.
drilling cum milling machine manufacturer bhavnagar gujarat india, drilling cum milling machines manufacturer bhavnagar gujarat indiaindustrial drilling cum milling machines manufacturer bhavnagar gujarat india, domestic drilling cum milling machines manufacturer bhavnagar gujarat india, drilling cum milling machines manufacturer bhavnagar gujarat india best price, drilling cum milling machines manufacturer bhavnagar gujarat india local bahvnagar, drilling cum milling machine rajkot manufacturer bhavnagar gujarat india, drilling cum milling machines manufacturing bhavnagar gujarat india
Versatility for Precision Machining
Designed for both drilling and milling, this machine offers flexibility for a range of operations. The spindle taper's adaptability (MT 3 / MT 4) and variable speeds (8 or 12 steps) make it suitable for different materials and machining requirements. Its heavy-duty build and smooth operation also ensure consistent, reliable performance in industrial settings.
Robust Structure with Large Working Table
The rigid cast iron and mild steel construction supports heavy-duty tasks, while the spacious table size (800 x 240 mm) and generous table traverse (X/Y: 400 mm/180 mm) allow for large workpieces and extended machining areas. Low noise levels, easy controls, and a powerful 2 HP motor enhance user experience and productivity in demanding applications.
FAQ's of drilling cum milling machines:
Q: How does the machine accommodate both drilling and milling operations?
A: The machine is engineered as a vertical milling cum drilling unit, featuring a spindle taper (MT 3 or MT 4) and a large table. This setup enables rapid switching between drilling holes up to 25 mm diameter and milling surfaces up to 15 mm, providing excellent versatility for precision metalworking tasks.Q: What features ensure accurate and smooth machining performance?
A: With variable spindle speeds (8 or 12 steps ranging from 80 to 2800 RPM), precise table movements (X: 400 mm, Y: 180 mm), and a rigid cast iron frame, the machine guarantees accurate cuts. Manual or automatic feed mechanisms further support smooth and controlled operation.Q: When is it advisable to use the automatic feed mechanism?
A: The automatic feed mechanism is best utilized during repetitive or long-duration machining tasks. It helps maintain consistent feed rates, reduces operator fatigue, and ensures precise, repeatable movements for professional results in both drilling and milling jobs.Q: Where can this drilling cum milling machine be installed and used effectively?
A: Ideal for industrial workshops, metal fabrication units, and maintenance shops, the machine's compact dimensions (1200 x 950 x 1800 mm) and semi-automatic manual controls make it suitable for both production and repair environments across India.Q: What is the process for changing spindle speeds and utilizing the V-belt drive?
A: The V-belt drive system allows users to change spindle speeds by manually shifting the belts to different pulley positions. This straightforward process enables eight or twelve speed variations, accommodating various materials and machining requirements with ease.Q: How does the optional coolant system benefit machining operations?
A: The available coolant system reduces heat buildup during intense or prolonged machining, extending tool life and improving cut quality. This is particularly advantageous for precision milling and drilling in industrial applications where temperature control is critical.
